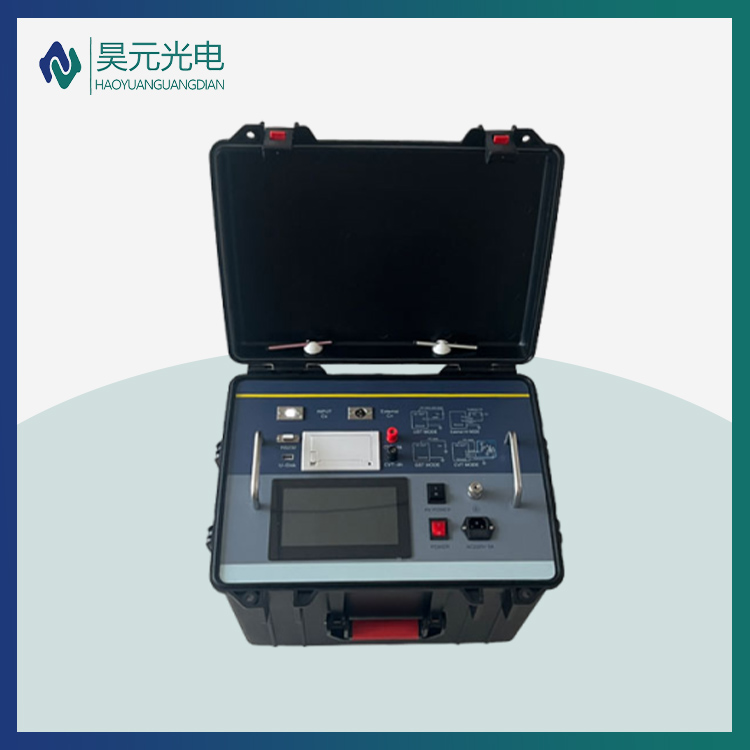

Dielectric loss measurement is a very basic method in insulation test. It can effectively detect the whole damp deterioration and partial defects of electrical equipment insulation. It is widely used in electrical manufacturing, installation of electrical equipment, handover and preventive testing. Measurement of dielectric loss of transformer, transformer, reactor, capacitor, bushing and arrester is the most basic method to measure their insulation performance.
The instrument uses Fourier transform digital filtering technology to measure capacitance, dielectric loss and other parameters. The test result has high precision and is easy to realize automatic measurement.
The instrument adopts frequency conversion technology to eliminate 50Hz power frequency interference in the field. Even in the environment of strong electromagnetic interference, reliable data can be measured.
It is easy to operate with full touch LCD. Full touch LCD screen, super full graphics operation interface, each process is very clear, operators can use without additional professional training. The whole process can be measured by touch.
Storage data: It is equipped with a calendar chip and a large-capacity memory, which can save the test results at any time, view the historical records at any time, and print out. The current time and storage time can be displayed and printed at any time.
Scientific and advanced data management: Instrument data can be exported through U disk, and can be viewed and managed on any PC by special software.
The instrument is easy to operate and the measurement process is controlled by microprocessor. As long as the appropriate measurement mode is selected, the measurement of data can be completed automatically under the control of microprocessor.
Integrated model, with standard capacitor and high voltage power supply, is convenient for field test and reduces field wiring.
The instrument has high accuracy and can meet the requirements of oil dielectric loss measurement. Therefore, only standard oil cup and special testing line are needed to realize oil dielectric loss measurement.
It has the function of low voltage shielding for reverse wiring. Under the condition of 220 kV CVT bus grounding, it can measure the dielectric loss of 10 kV reverse wiring without disconnection.
Introduction to Instrument Function
