The instrument employs patented multi-channel high-voltage leakage current measurement technology and infrared data communication technology, achieving the goal of safely measuring high-voltage leakage currents. With the application of this technology, the tester is completely isolated from the high-voltage system, enabling not only precise measurement of multi-channel high-voltage leakage currents but also ensuring the personal safety of the test personnel.
To improve work efficiency, up to 8 test specimens can be tested simultaneously. To avoid repeated testing, patented high-voltage breakdown technology is employed, allowing the failed specimens to be removed from the high-voltage testing system while the remaining specimens continue testing until completion.
Five patents
● High-voltage Disconnection Mechanism
● Multi-path Leakage Current Measurement
● Paperless Office
● Rapid Disconnection Device
● Infrared data transmission
three major characteristics
● Safety: High voltage is completely isolated from the console.
● Accuracy: Multi-channel leakage current measured separately, infrared transmission.
● Efficiency: The failed or overcurrent specimen automatically disconnects, while the remaining specimens continue testing.
Features

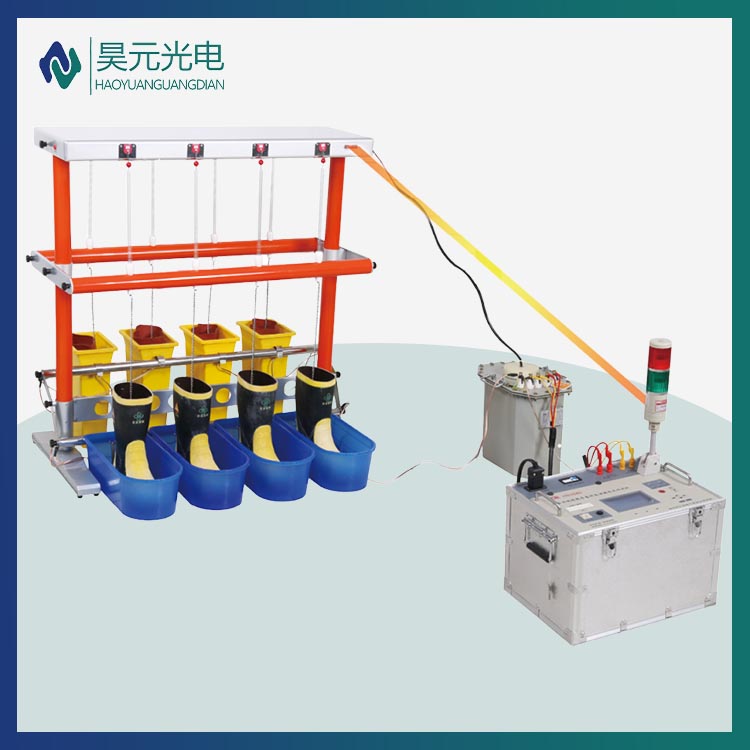

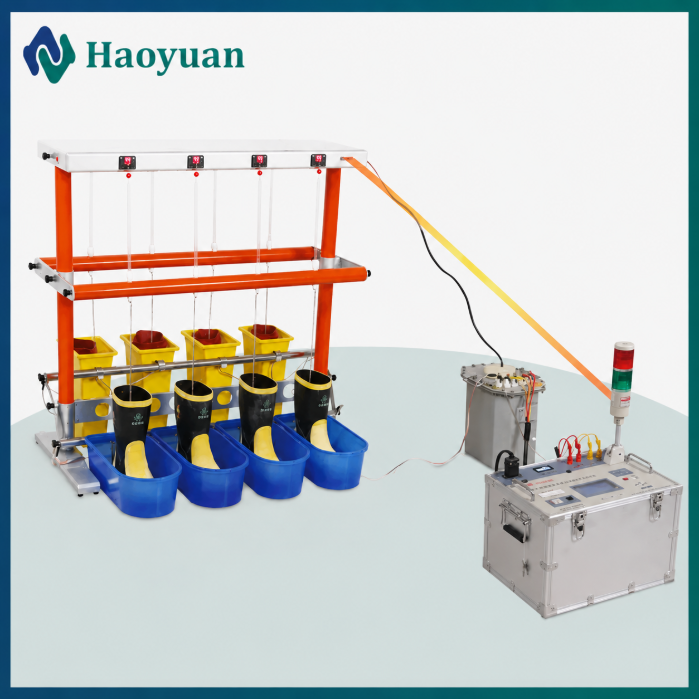

● Conduct tests on 8 or 16 pairs of insulating boots or gloves simultaneously, measuring the leakage current for each.
● An optional insulated rod support is available for voltage withstand testing.
● Equipped with a large-screen LCD full Chinese display, it provides extensive information, showing eight channels of high-voltage leakage current, test voltage, current, timing time, and other parameters simultaneously on one screen.
● Measurable parameters include test voltage and primary current of the test transformer.
● Utilizing patented infrared communication technology, the operating console is completely isolated from the high-voltage system, ensuring the safety of test personnel.
● Fully automatic withstand voltage test. After the test begins, the instrument automatically closes the circuit and increases the voltage at the standard-required rate. Upon reaching the preset voltage, it starts timing and maintains the test voltage. Upon time expiration, the voltage automatically drops to zero and power is cut off, while displaying the leakage current of each specimen and automatically saving the test results.
● Equipped with a dedicated grounding container for easy operation.
● Each test specimen is equipped with a high-voltage breaking mechanism, which automatically disconnects the specimen from high voltage when any one of them breaks down, ensuring the continuity of the test.
● It features overvoltage and overcurrent protection functions.
● Equipped with high-voltage hazard warning lights.
● It can store 60 sets of test data and is equipped with a high-speed printer for on-site data printing.
