The test bench has two working modes: dry test and wet test. The test bench is equipped with an electric water injection gun for easy water injection operation of the test sample. During dry test, steel balls can be used as high-voltage electrodes for insulating boots.
The test bench adopts patented technology for multi-channel high-voltage leakage measurement and infrared data communication technology, achieving the goal of safe measurement of high-voltage leakage current. Through the application of this technology, the tester is completely isolated from the high-voltage system, which not only accurately measures multiple high-voltage leakage currents, but also ensures the personal safety of the testing personnel.
·Main functions:
1) Simultaneously conduct a test on 8 insulated boots or gloves and measure the leakage current separately.
2) Each test sample is equipped with a high-voltage breaking mechanism. When any circuit breaks down, the test sample will automatically detach from the high voltage without affecting the progress of the test.

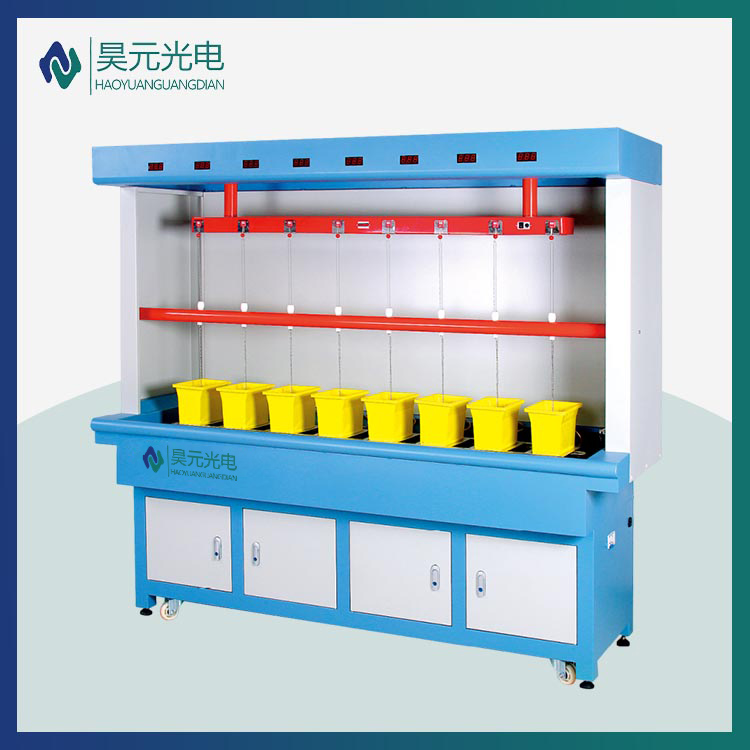

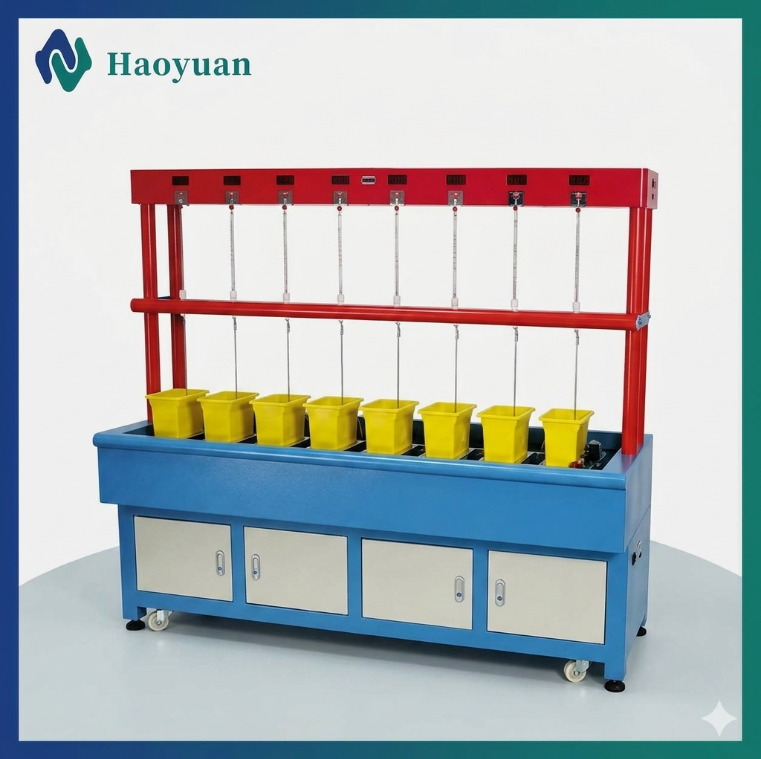

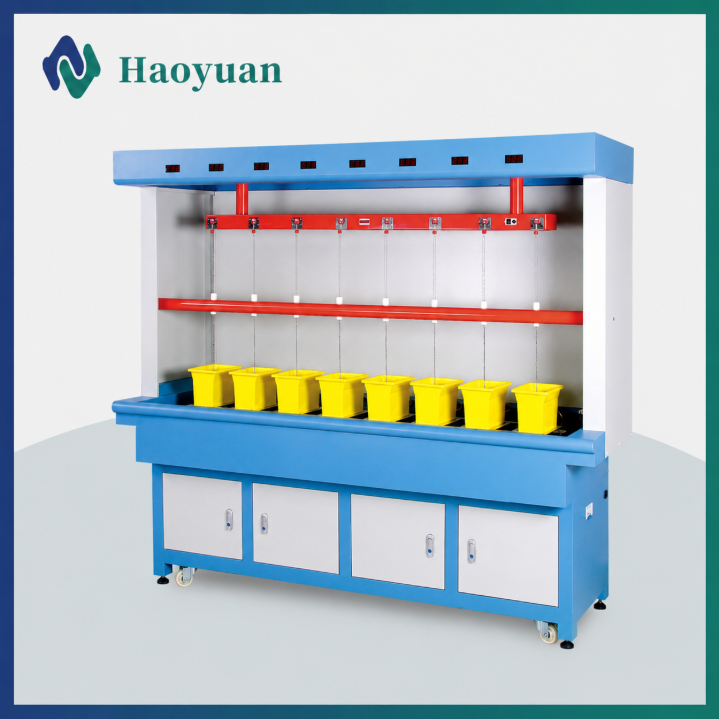

3) The HB2680YW insulated boot glove withstand voltage leakage current test bench is specially developed for insulation tool testing laboratory equipment. The test bench adopts a desktop structure, with 8 test samples arranged in a single row, suitable for placement against the wall. The test bench insulation boots and gloves are placed on the test bench, making it easy to operate without bending over and reducing labor intensity.
4) The test bench has two working modes: dry test and wet test. The test bench is equipped with an electric water injection gun for easy water injection operation of the test sample. During dry test, steel balls can be used as high-voltage electrodes for insulating boots.
5) The test bench adopts patented technology for multi-channel high-voltage leakage measurement and infrared data communication technology, achieving the goal of safe measurement of high-voltage leakage current. Through the application of this technology, the tester is completely isolated from the high-voltage system, which not only accurately measures multiple high-voltage leakage currents, but also ensures the personal safety of the testing personnel.
6) It has overcurrent protection function.
