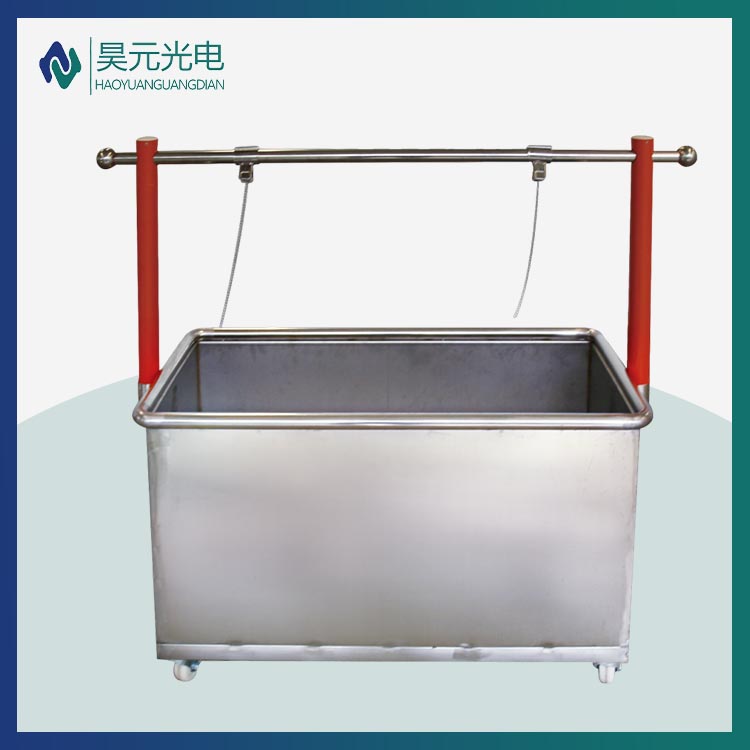

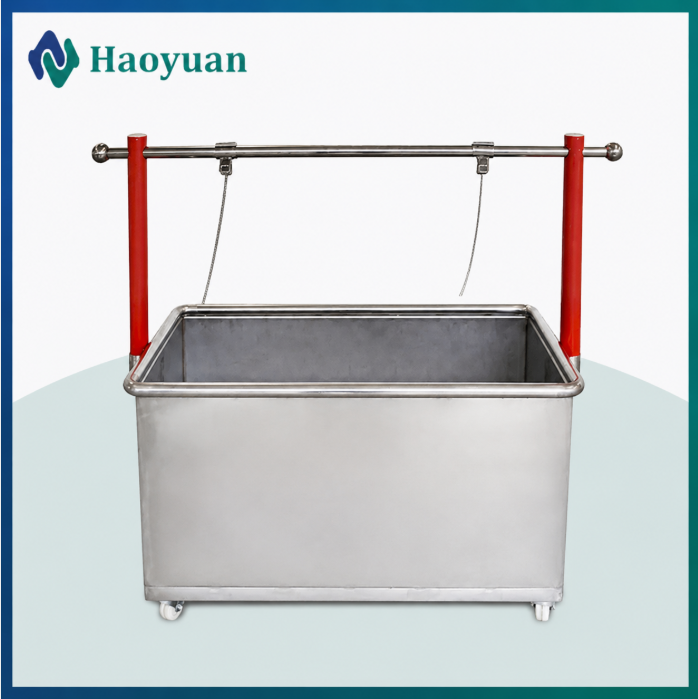

The insulation strength test device for connecting wires consists of a test water tank and a boosting device. The experimental water tank is designed as a rectangular structure, made of high-quality stainless steel to ensure long-term use without rusting, and the edge of the water tank is made into a circular arc shape to ensure safety. There are two upright insulating rods installed on both sides of the sink, supporting a stainless steel tube placed horizontally as a high-voltage test electrode. The effective length of the insulating rod ensures the strength to withstand the test voltage.
·Technical parameters
Rated voltage: 50kV
Sink material: SUS304
Sink size: 1000 * 500 * 500 (mm)
