Functional Features

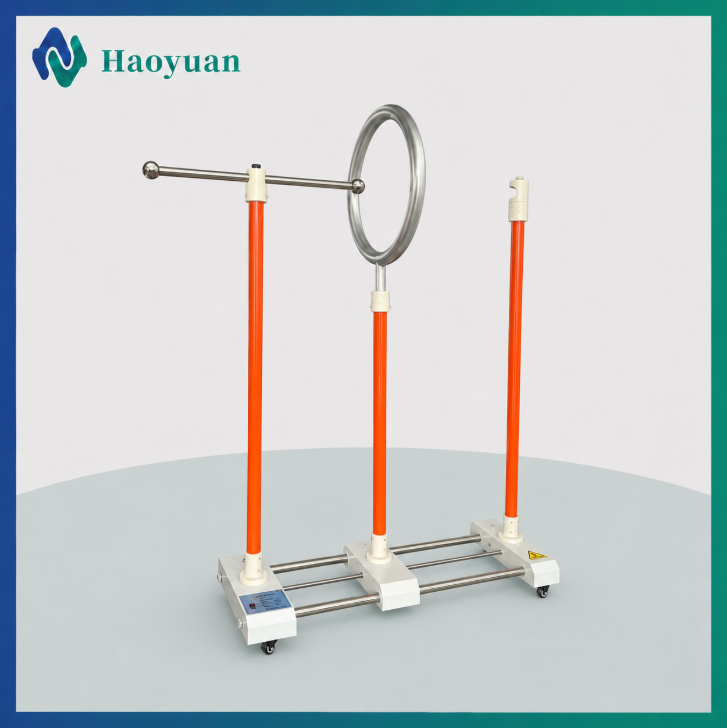

1) The high-voltage electrode is spherical, and the grounding electrode has a circular structure.
2) The grounding electrode is fixed, and the high-voltage electrode can be electrically driven to move left and right.
3) The electric mechanism is controlled by buttons and wireless remote control, as well as fine tuning control for precise distance adjustment.
4) The test bracket has a ruler scale, which allows for intuitive and accurate distance adjustment.
5) The high-voltage electrode of the electroscope is designed with an electroscope adjustment alignment device, which facilitates alignment and contact with the electrode center.
6) The electrode height of the 63-500 voltage tester test bracket is 2.5 meters, which makes it difficult to replace the test sample. The voltage tester bracket is designed with a rotating mechanism that can rotate 90 degrees, making it easy to disassemble and assemble the test sample.
·Technical parameters
Model, rated voltage, detection object, external dimensions, weight
A-type 100kV 35kV and below capacitive tester 1205 × 600 × 1700 (mm) 24kg
B-type 250kV 63-500kV capacitive tester 1650 × 1100 × 3050 (mm) 46kg
C-type 350kV 750kV capacitive tester 1850 × 1650 × 4325 (mm) 62kg
