Main functions

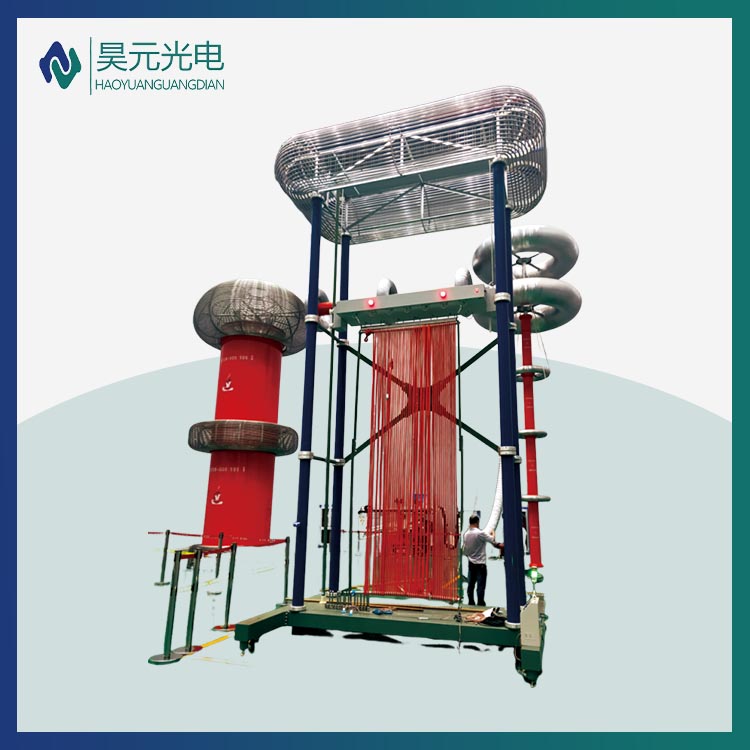

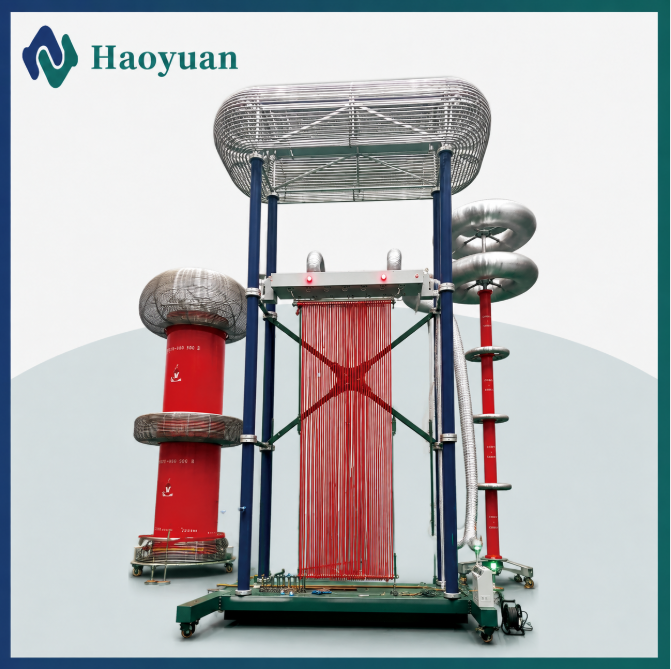

1) The high-voltage insulation rope test device uses two sets of electrodes and high-quality glass pulling rods as supports, with adjustable test length, suitable for voltage withstand tests of 110-1000kV insulation ropes.
2) The experimental electrode is made of SUS304 stainless steel material.
3) The test bracket has a dedicated support device for easy winding of insulation ropes.
4) The high-voltage electrode is equipped with a stainless steel connection device, which is connected to the high-voltage test lifting platform.
5) The specifications of the tooling are selected according to the highest voltage level.
·Technical parameters
Test voltage specifications (kV) 220, 330, 500, 750, 1000
Test length (m) 1.0, 1.8, 2.8, 3.7, 4.7, 6.3
Dimensions (mm) 5450 × 3000 × 9030
