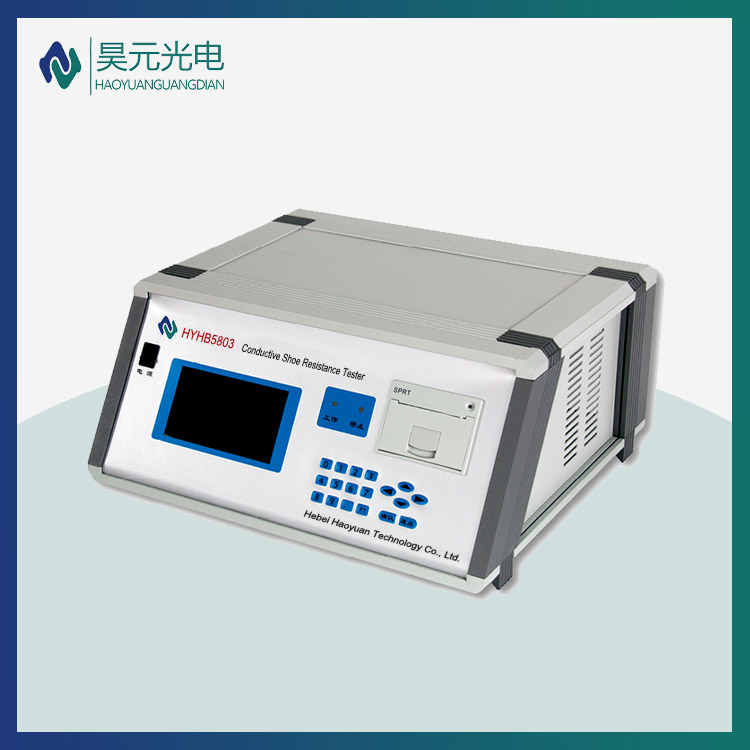

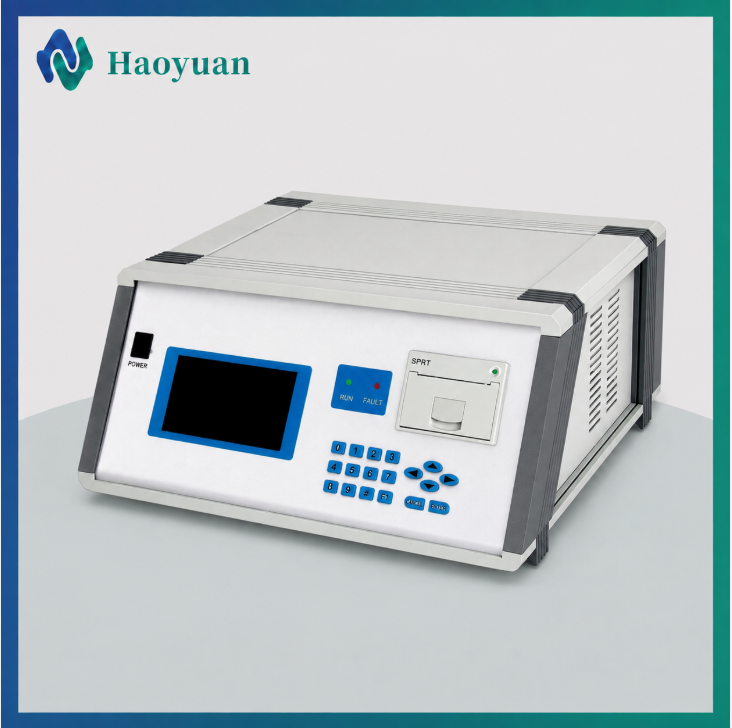

1.The HB5803 conductive shoe DC resistance tester is powered by a constant voltage power supply and outputs a test voltage of DC100V. The testing process is controlled by the CPU.
2. The instrument adopts a microcontroller designed LCD display, which has the advantages of small size, light weight, high accuracy, fast testing speed, stable data, and convenient reading.
3. The test host automatically adjusts the output voltage based on the measured resistance value.
4. Adopting a large screen color LCD full Chinese character menu human-machine interface, tabular data management, and easy to operate Chinese character prompts.
5. It can save 30 records of conductive shoe resistance and access test data at any time.
6. Using a high-speed thermal printer, test results can be printed on-site.
7. The instrument has a scanning function to read the sample number, and also has a login function for test personnel.
8. The instrument has a network interface, which connects to the cloud platform and is included in the test management system for data communication with the cloud platform at any time.
·Technical parameters
Test voltage: DC100V/DC1V two levels
Test current: ≤ 50mA
Test range: 40 Ω~1.6M Ω
Measurement error: ≤ 2.5% indication+0.25% range
Dimensions: 270 * 225 * 155 (mm)
Weight: 3.5 kg
