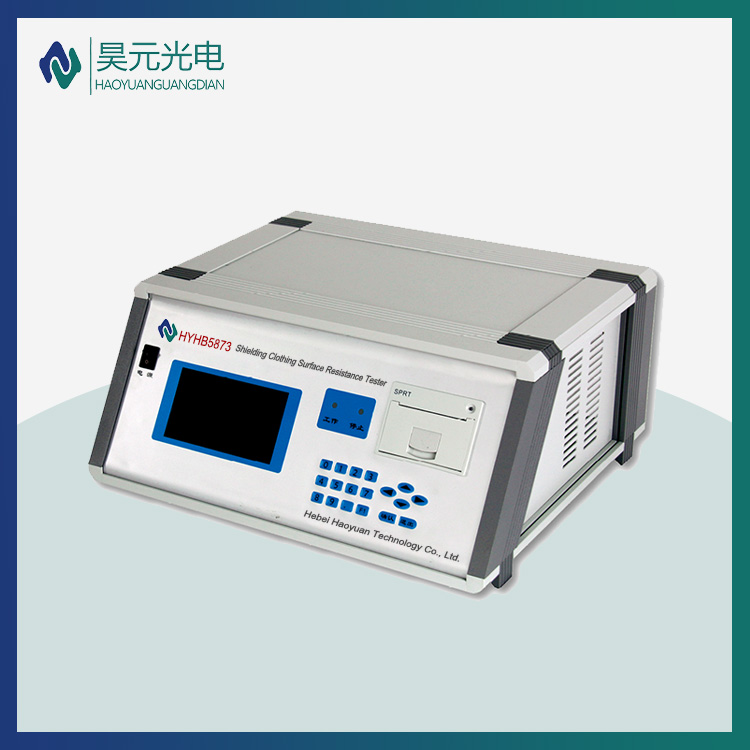

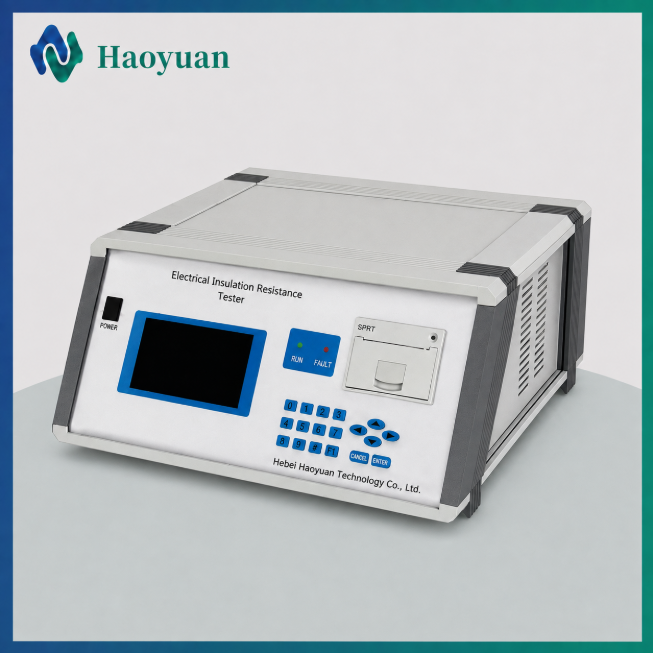

1Adopting a large screen LCD full Chinese character menu human-machine interface, tabular data management, and easy to operate Chinese character prompts.
2. The test host automatically adjusts the output voltage based on the measured resistance value.
3. The instrument has software calibration function and can automatically calibrate the resistance.
4. 30 test records can be saved and the test data can be viewed at any time.
5. Using a high-speed thermal printer, test results can be printed on-site.
6. The instrument has a scanning function to read the sample number, and also has a login function for test personnel.
7. The instrument has a network interface, which connects to the cloud platform and is included in the experimental management system for data communication with the cloud platform at any time.
·Technical parameters
Resistance measurement range: 0.1 Ω~1000 Ω
Measurement error: ≤ 1.0% indication+0.1% range
Display digit: 4 digits

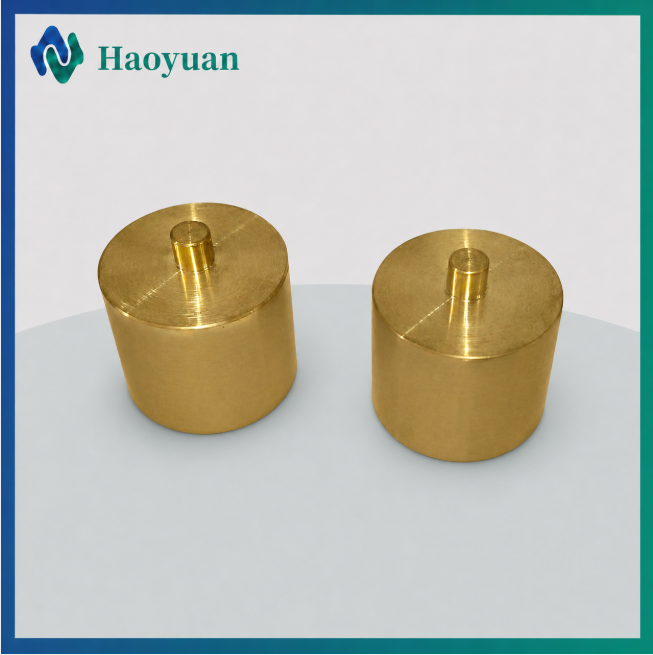

Electrode external dimensions: φ 55 * 57.5 (mm)
