Key Features

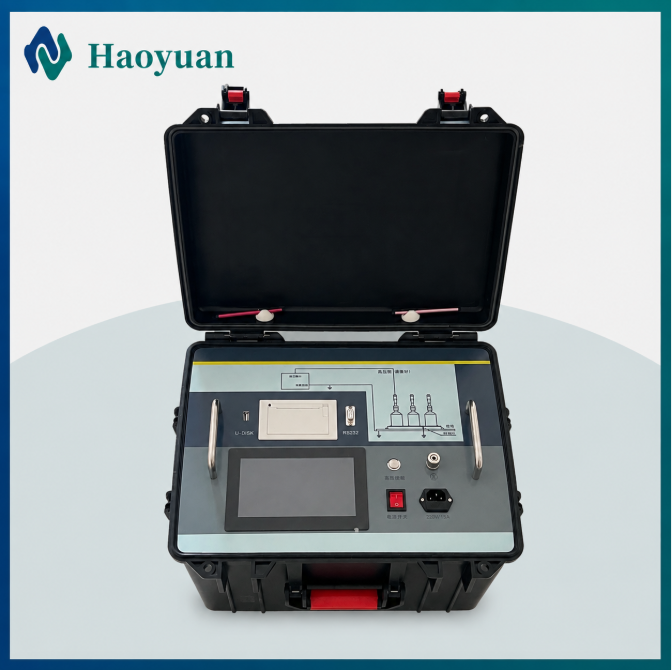

1. Portable Integrated Design

• Compact suitcase structure for easy transportation
• Integrated high-voltage output, measurement, and control system
• Suitable for field testing and laboratory applications

2. High Voltage Output Capability

• Output voltage range up to 30kV (RMS)
• Output current up to 25mA
• Designed for overvoltage protection device testing

3. Accurate Measurement System

• High-resolution voltage and current measurement
• Automatic waveform acquisition and analysis
• Reliable testing results with high accuracy

4. Intelligent Protection Function

• Real-time monitoring of test conditions
• Automatic fault detection
• Audible alarm indication for abnormal conditions

5. Data Management Function

• RS232 communication interface
• Supports data transmission and test record management
• Optional thermal micro printer for test reports

Applications

The HY Power Protector Tester is widely applied in:

• Power transmission and distribution systems
• Electrical substations
• Lightning arrester inspection
• Metal oxide arrester (MOA) testing
• Surge protection device (SPD) testing
• Electrical equipment maintenance
• Power research laboratories

Technical Specifications
